JB4 Detachable Driver Connectors

SKU: SE00251

Available to order from 12th January 2026

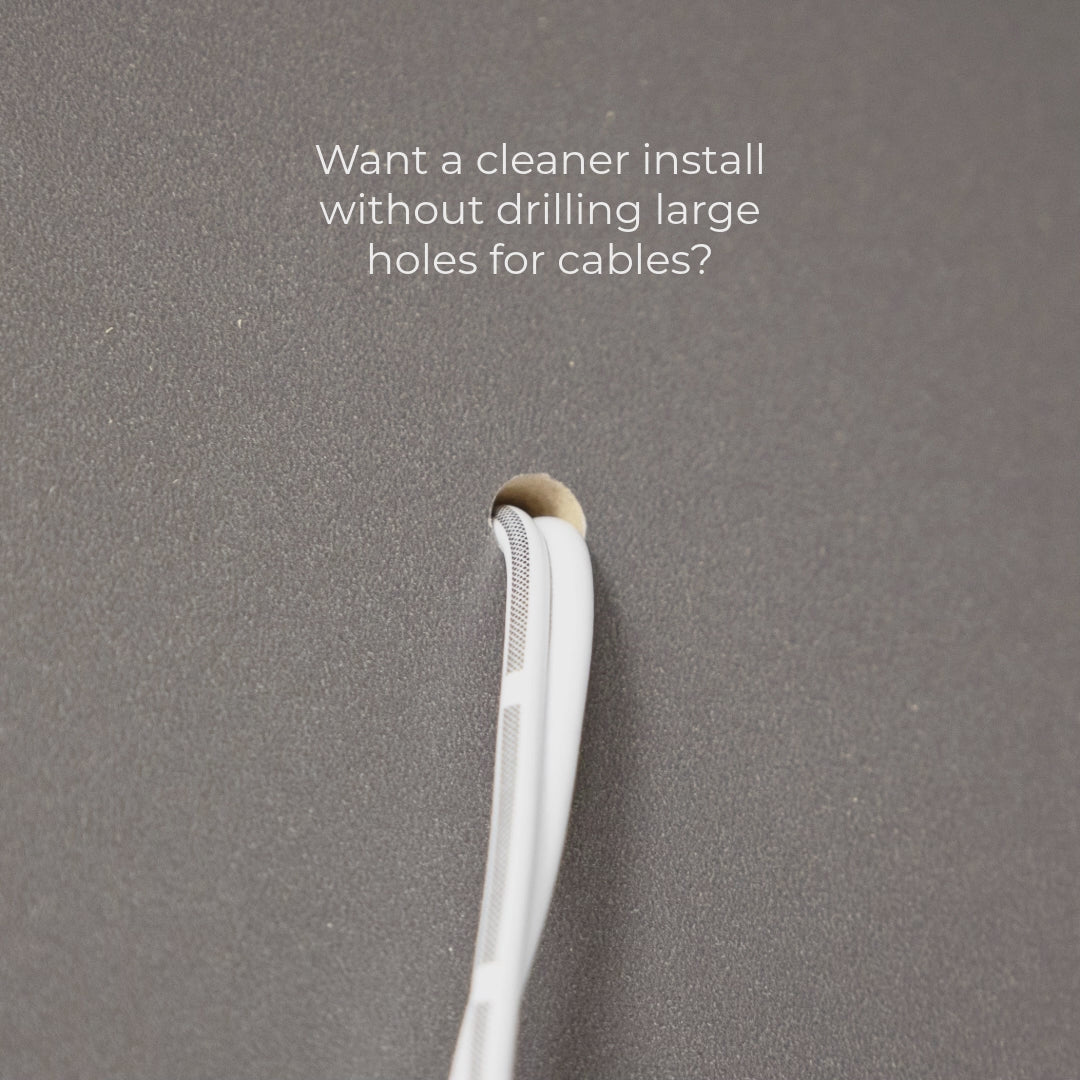

No need for large cable holes with the detachable JB4 connector. Simply cut the lead to required length and attach the JB4 clip, you don't even need to strip the cable!



  • Compatibility: Use any Sensio lighting products that require a driver lead

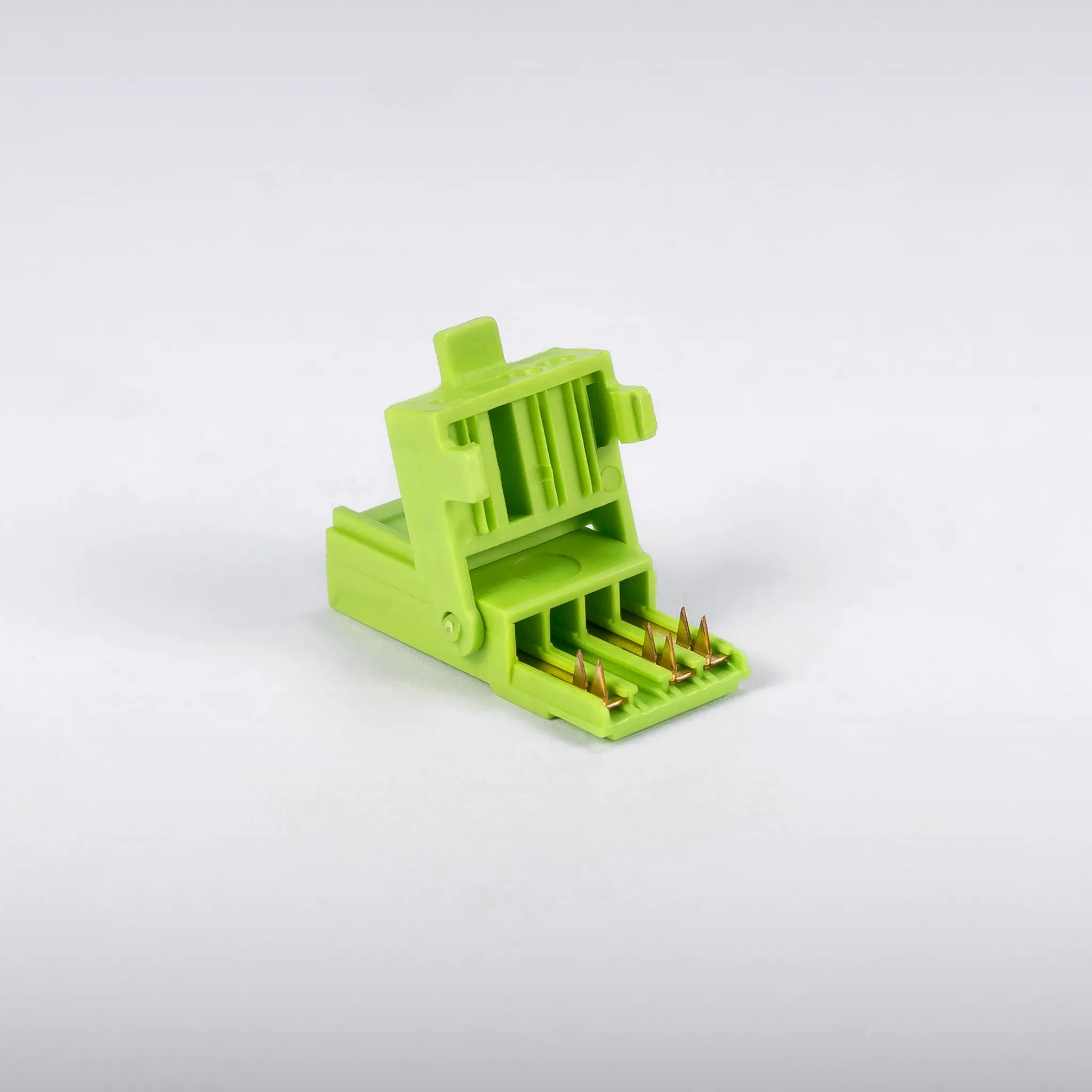

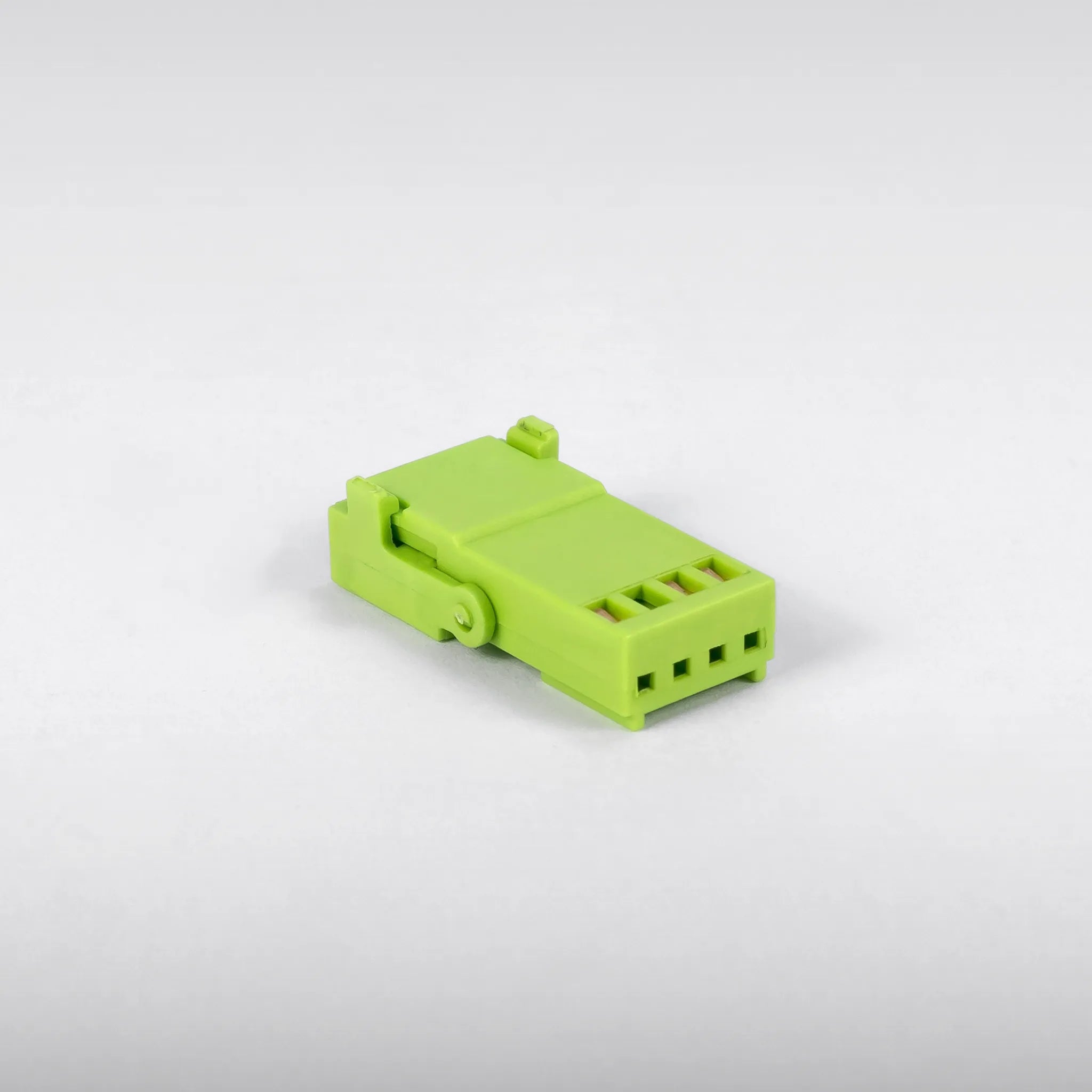

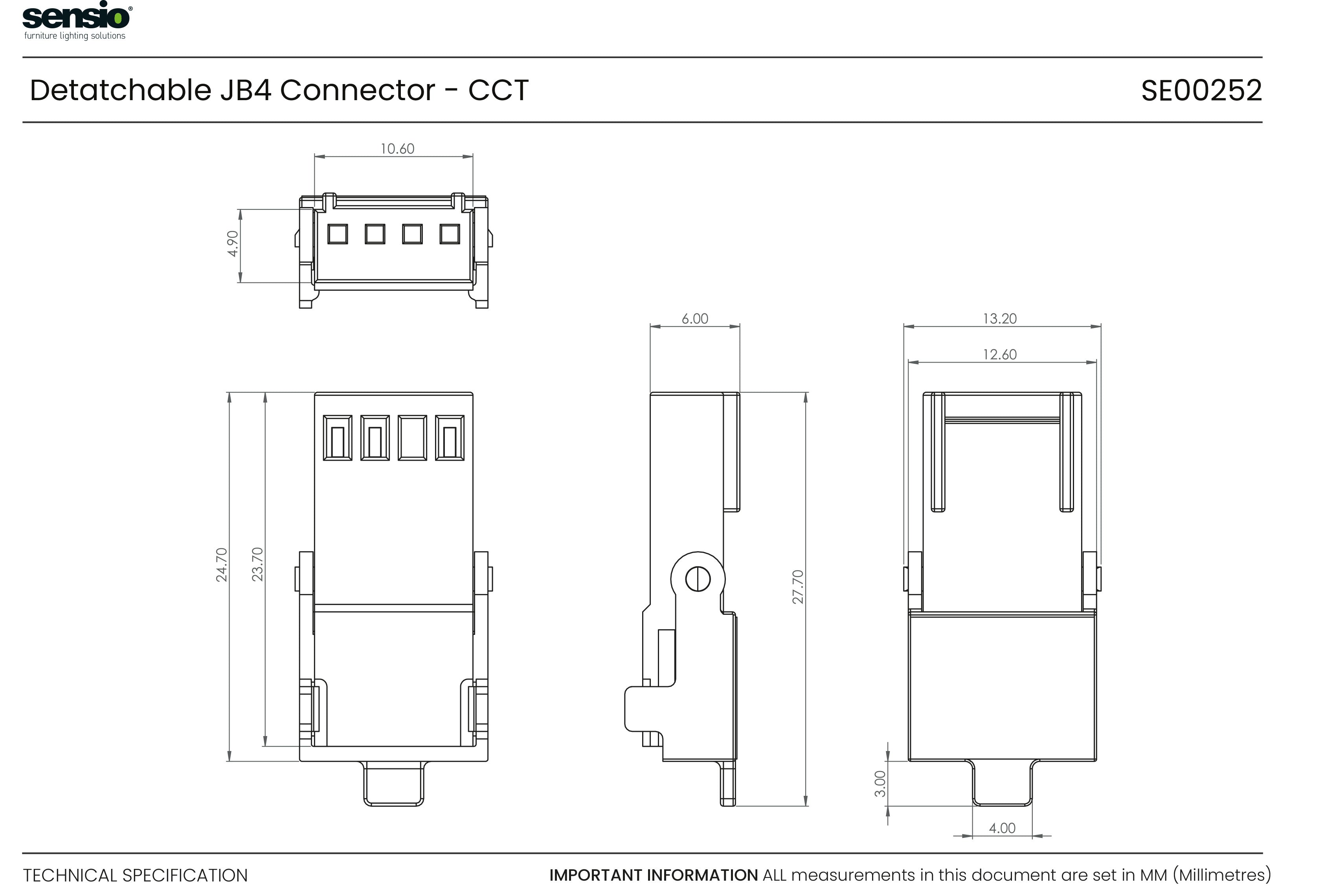

  • Availability: 2-pin (Single colour or TrioTone®) and 4-pin (CCT)
  • Registered Design Right: (2-pin): 6428454 (4-pin): 6428455
Type: 2-pin (Single colour)
Size: Pack of 10
Preguntar

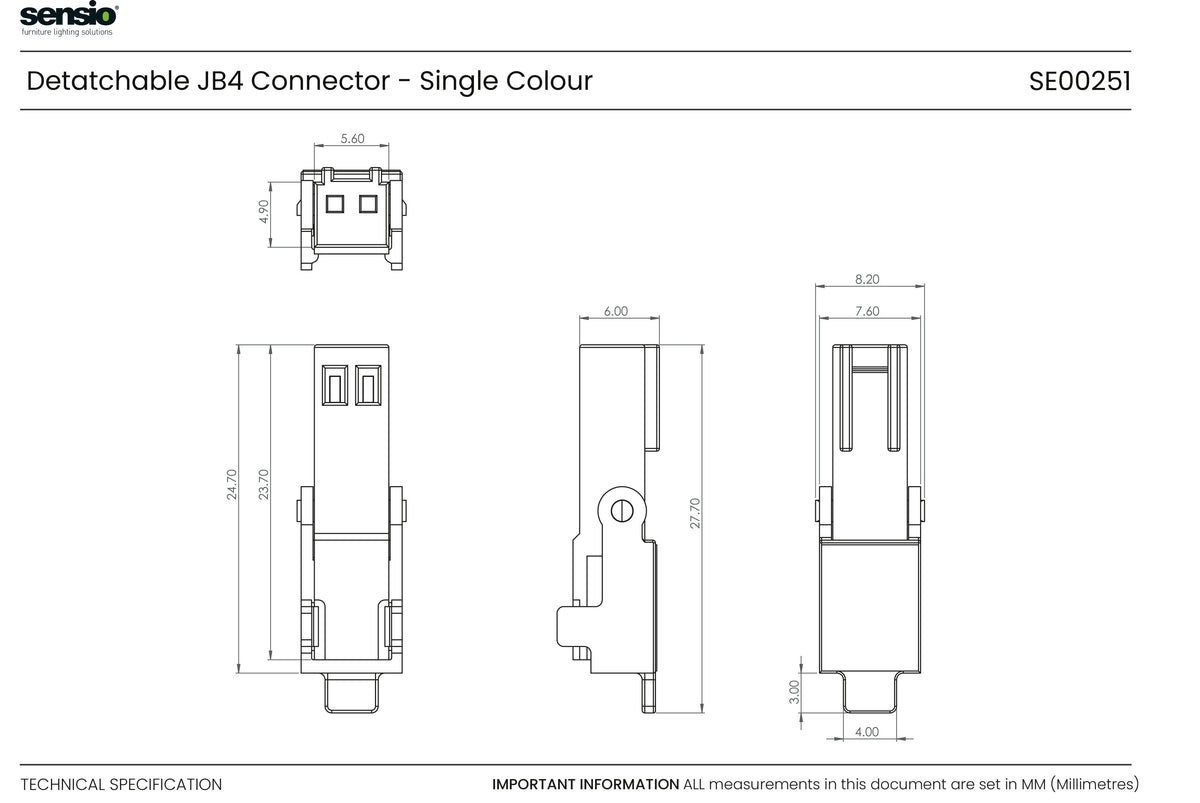

Dimensiones

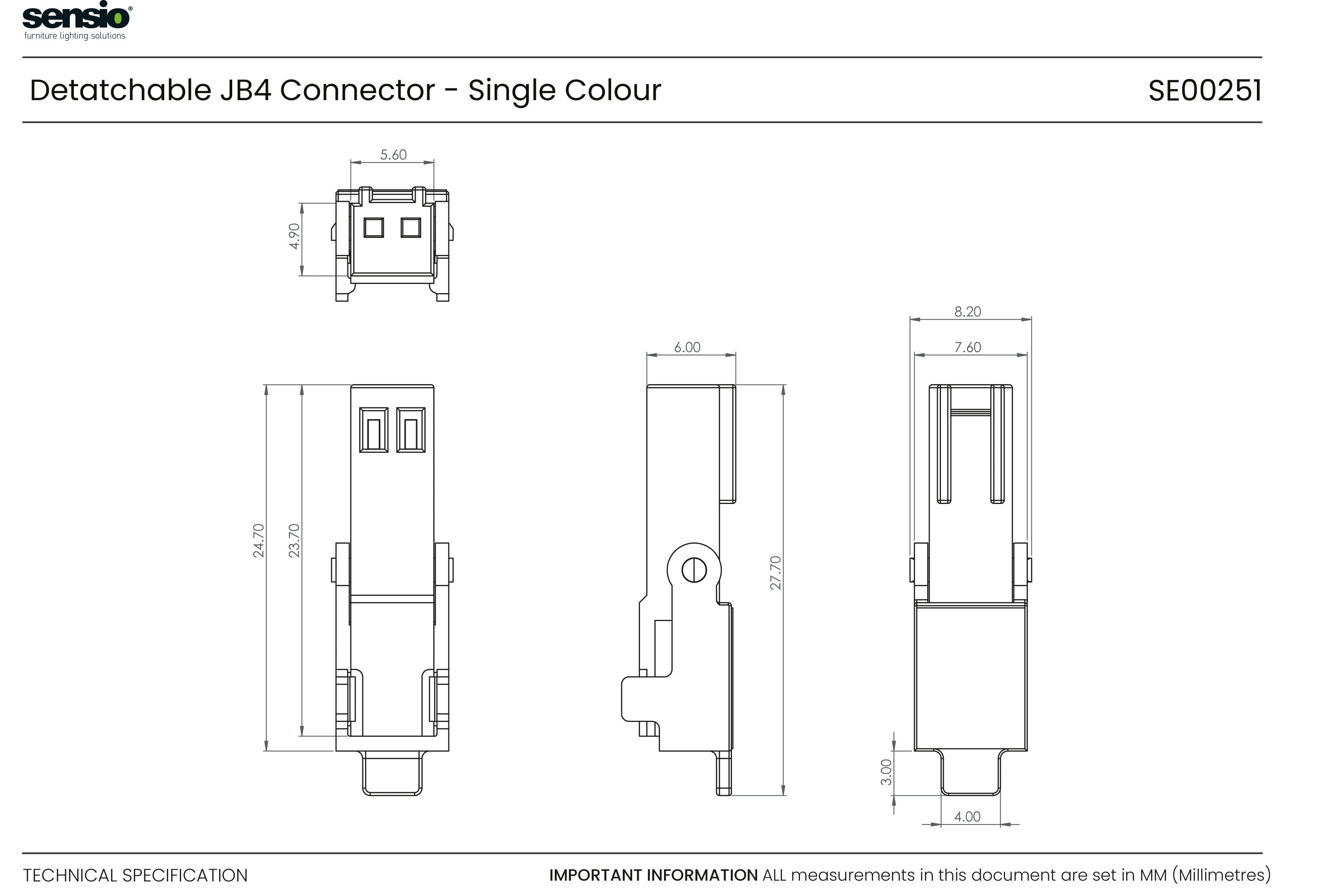

8.5mm x 28mm x 7.5mm | 13mm x 28mm x 7.5mm
Garantía
5 Years

No more cable excess

Installing the JB4 connector

Step 1

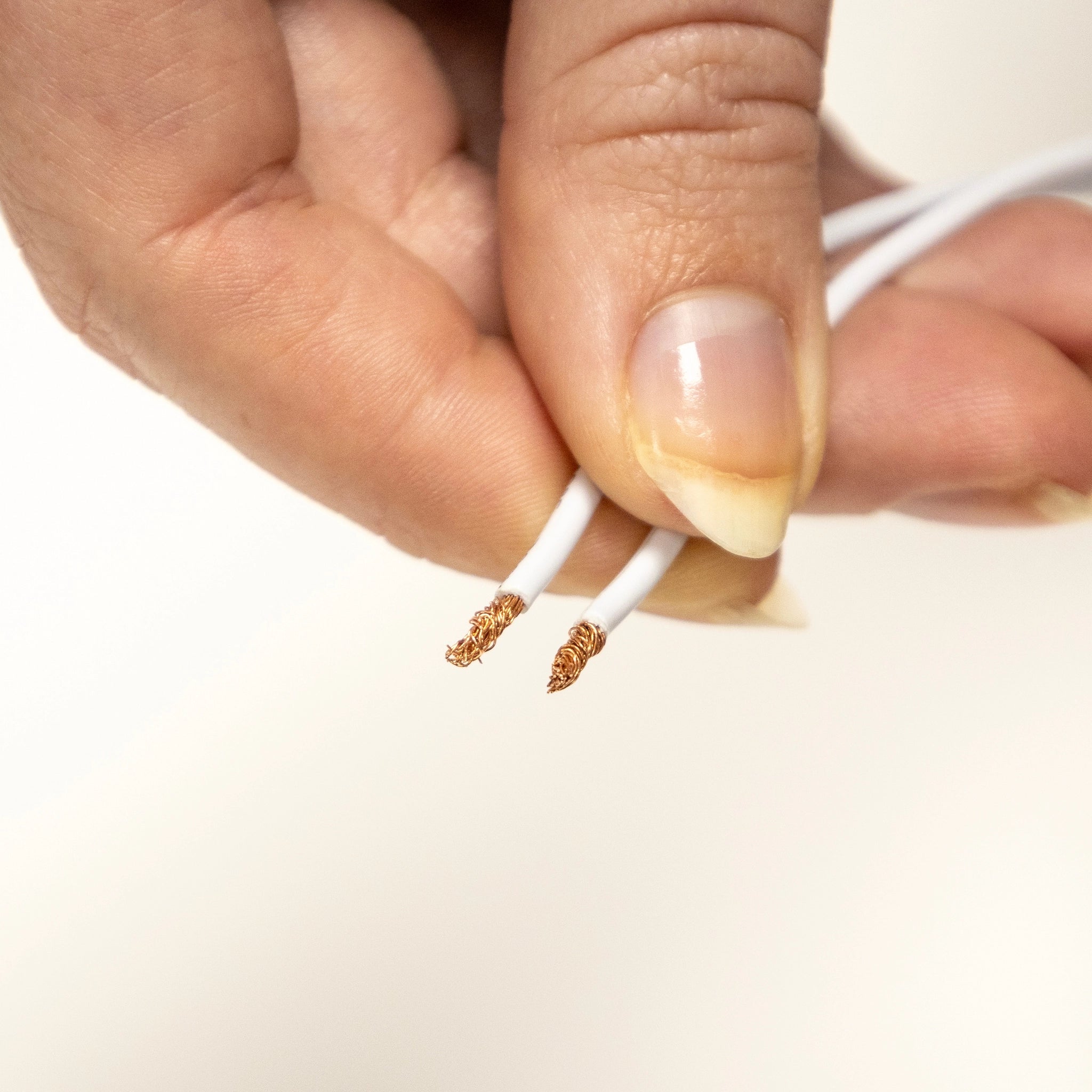

Cut the wire to the desired length. No need to remove the cover.

Step 2

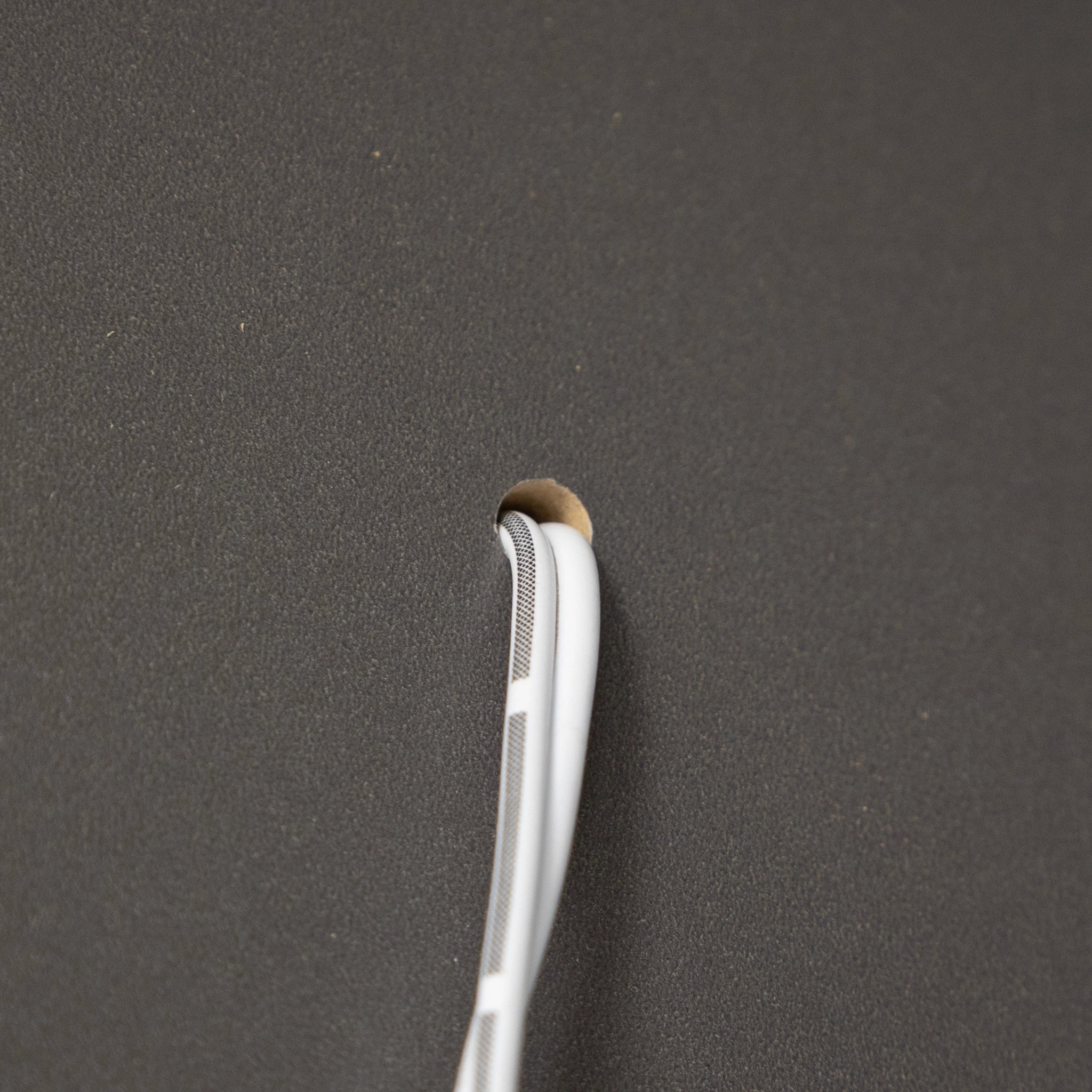

Drill a hole big enough to feed the wire through your cabinet or unit

Step 3

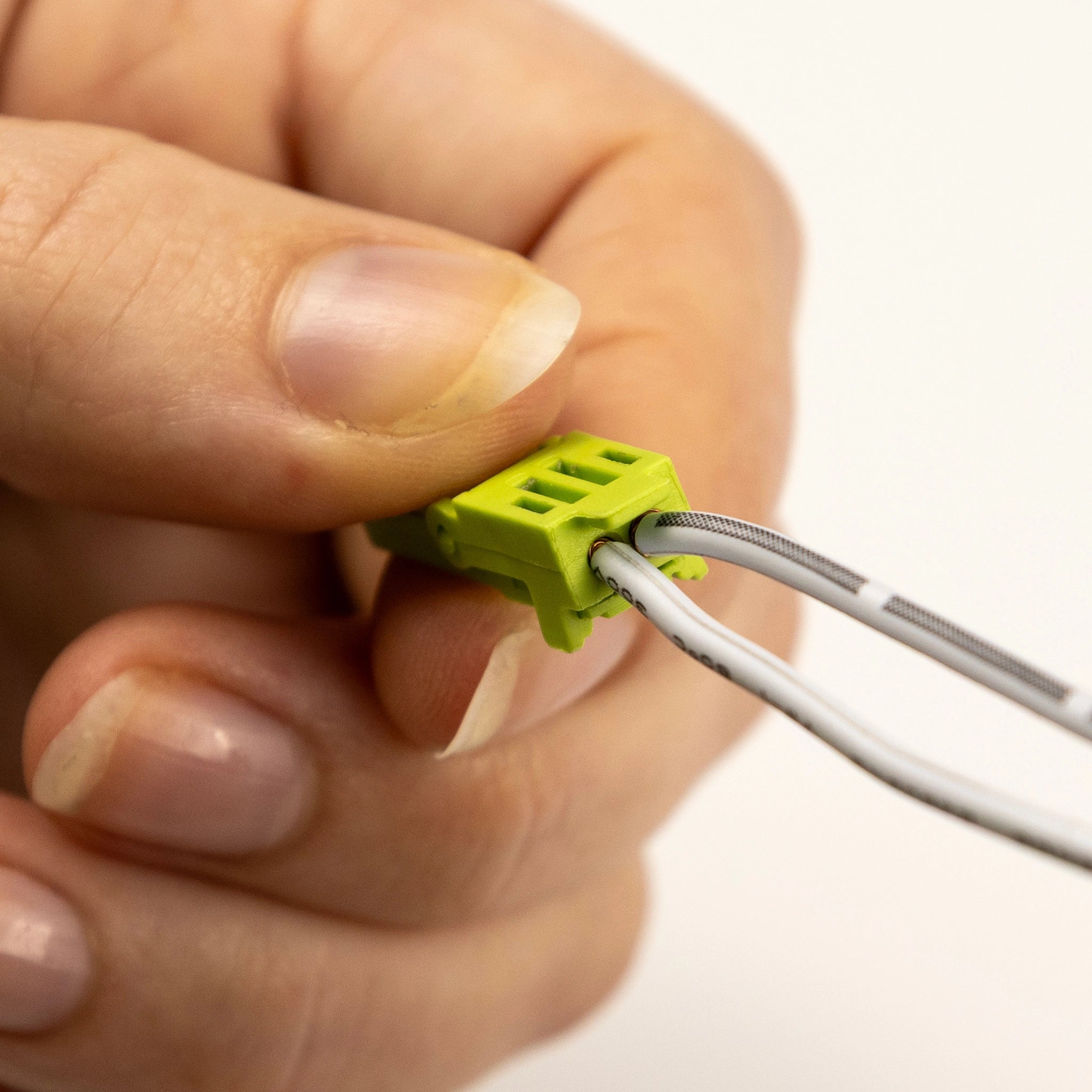

Insert the copper wire into the two holes of the JB4 then clip the connector shut to secure the wire

Step 4

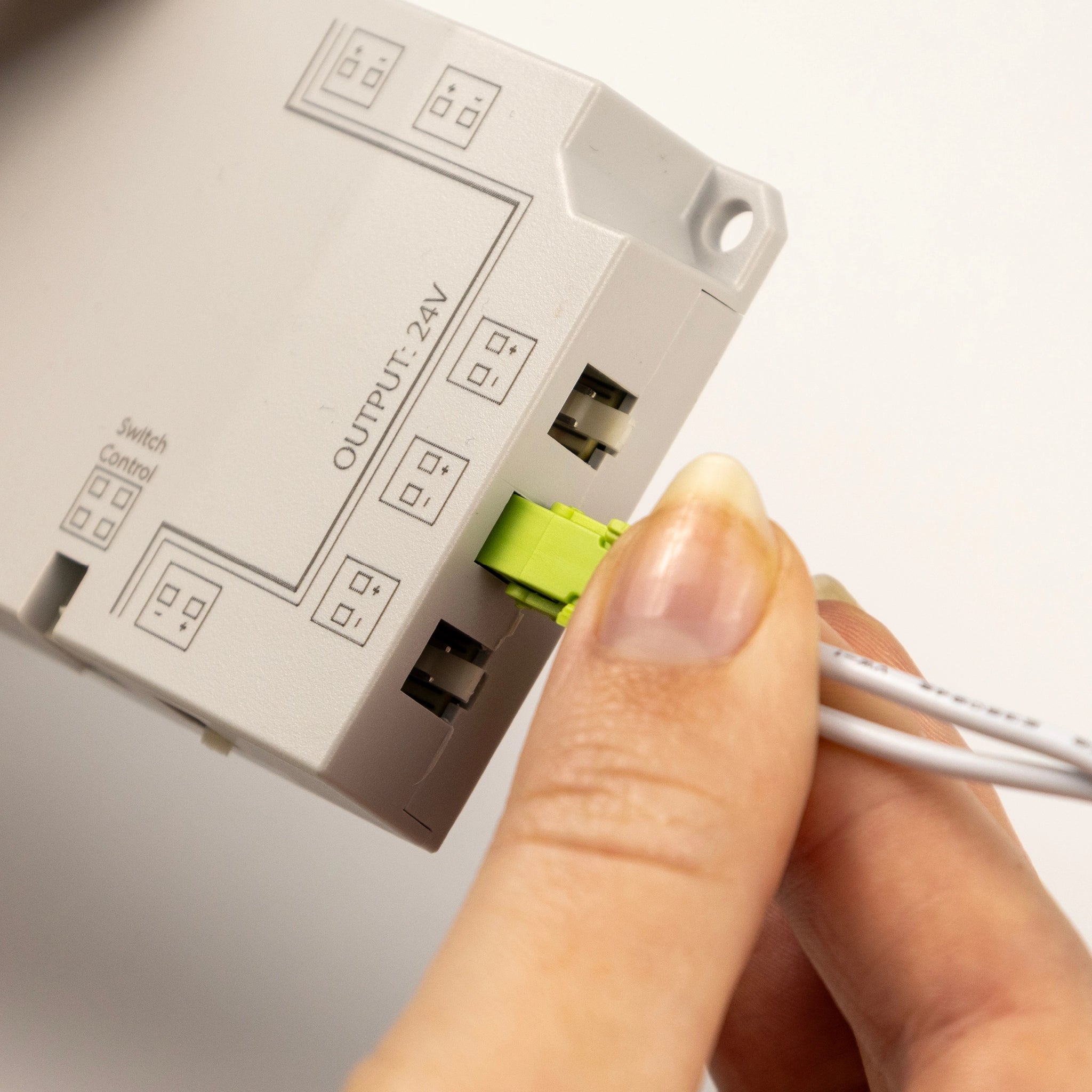

Insert the JB4 connector into the driver

Productos compatibles

#Light Colour_ Natural White#Light Colour_Natural White
Polar X
Corte libre, COB, tira flexible
NEW
#Light colour_Natural White#Light colour_Natural White

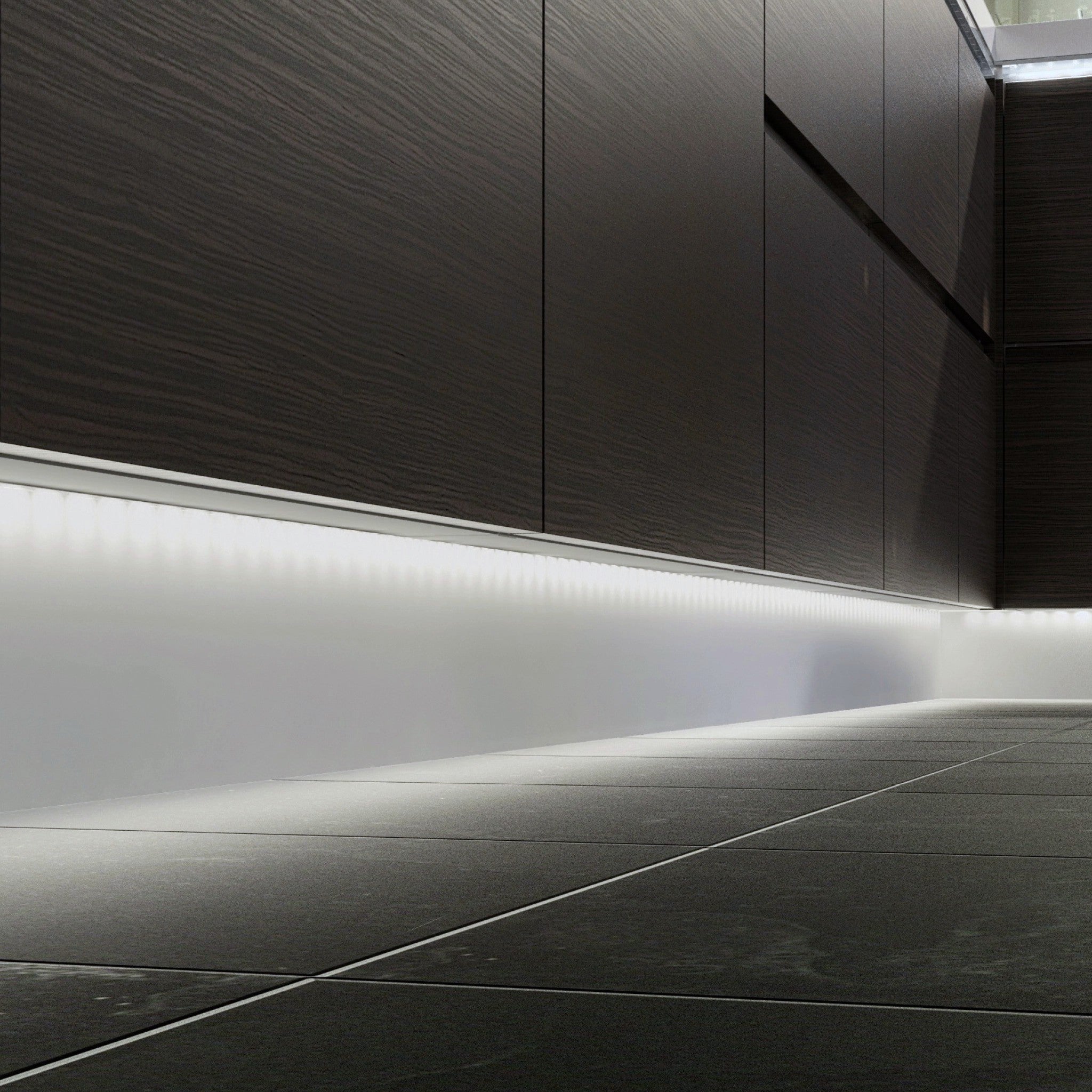

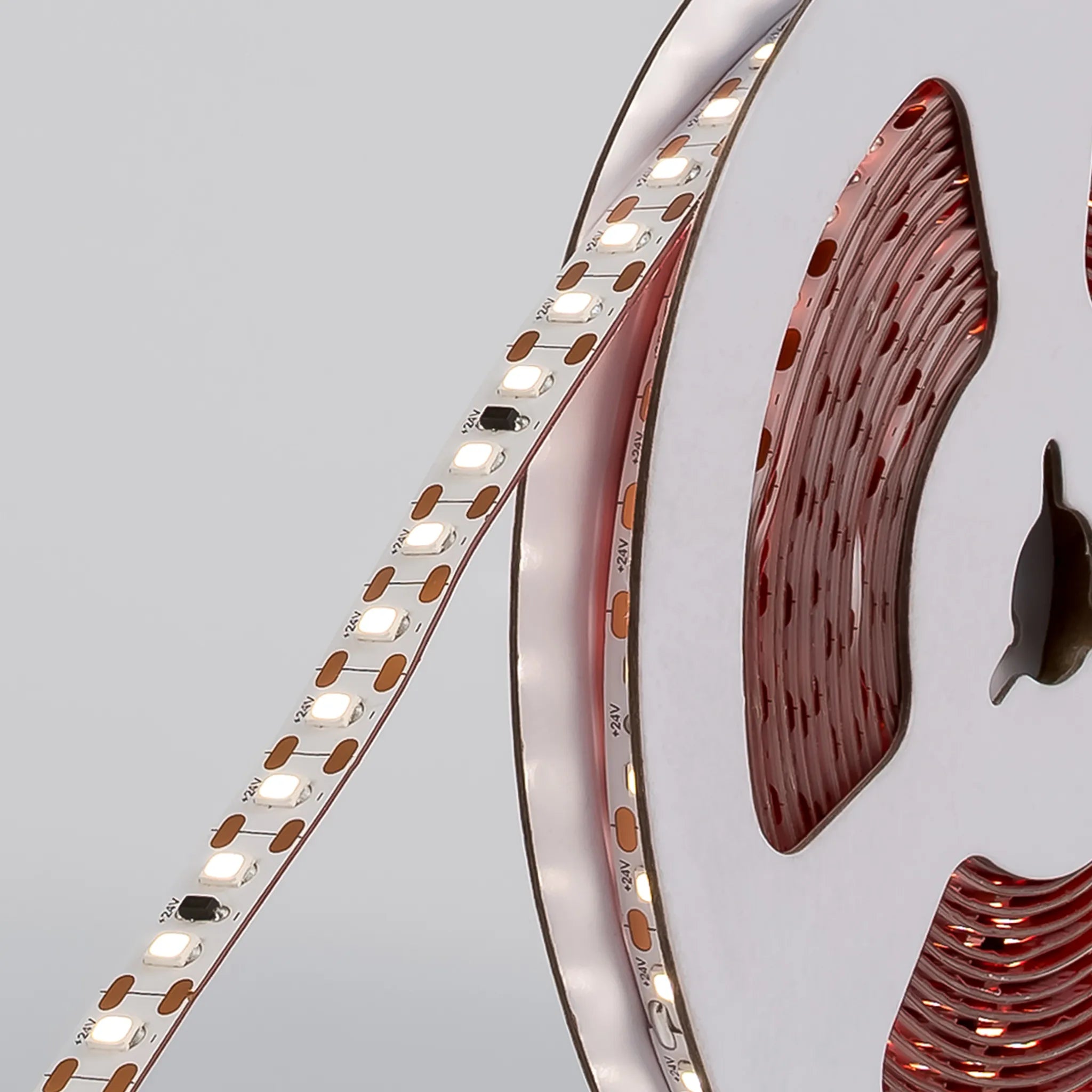

Primo X
Free cut LED flexible strip
#Light Colour_Natural White#Light Colour_Natural White

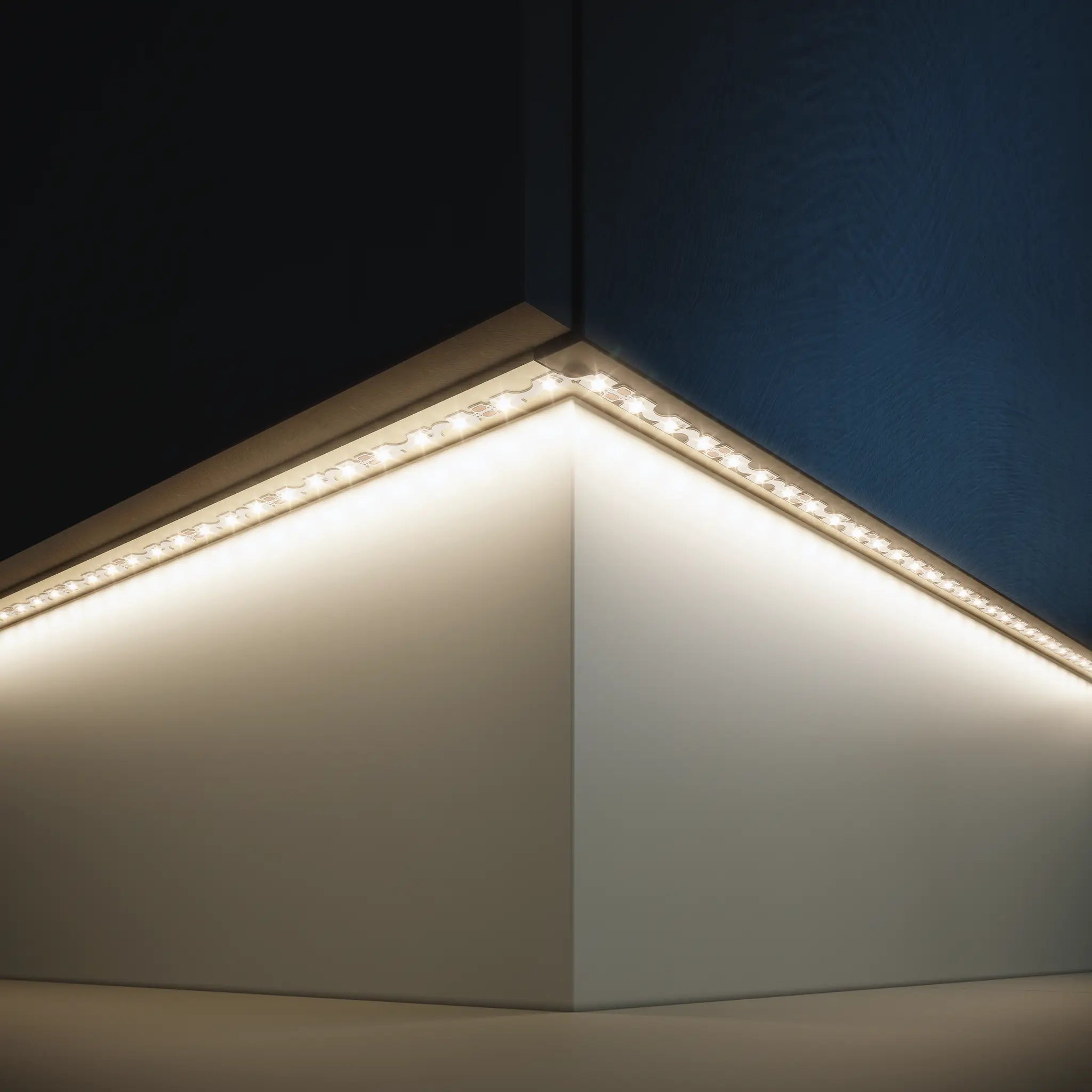

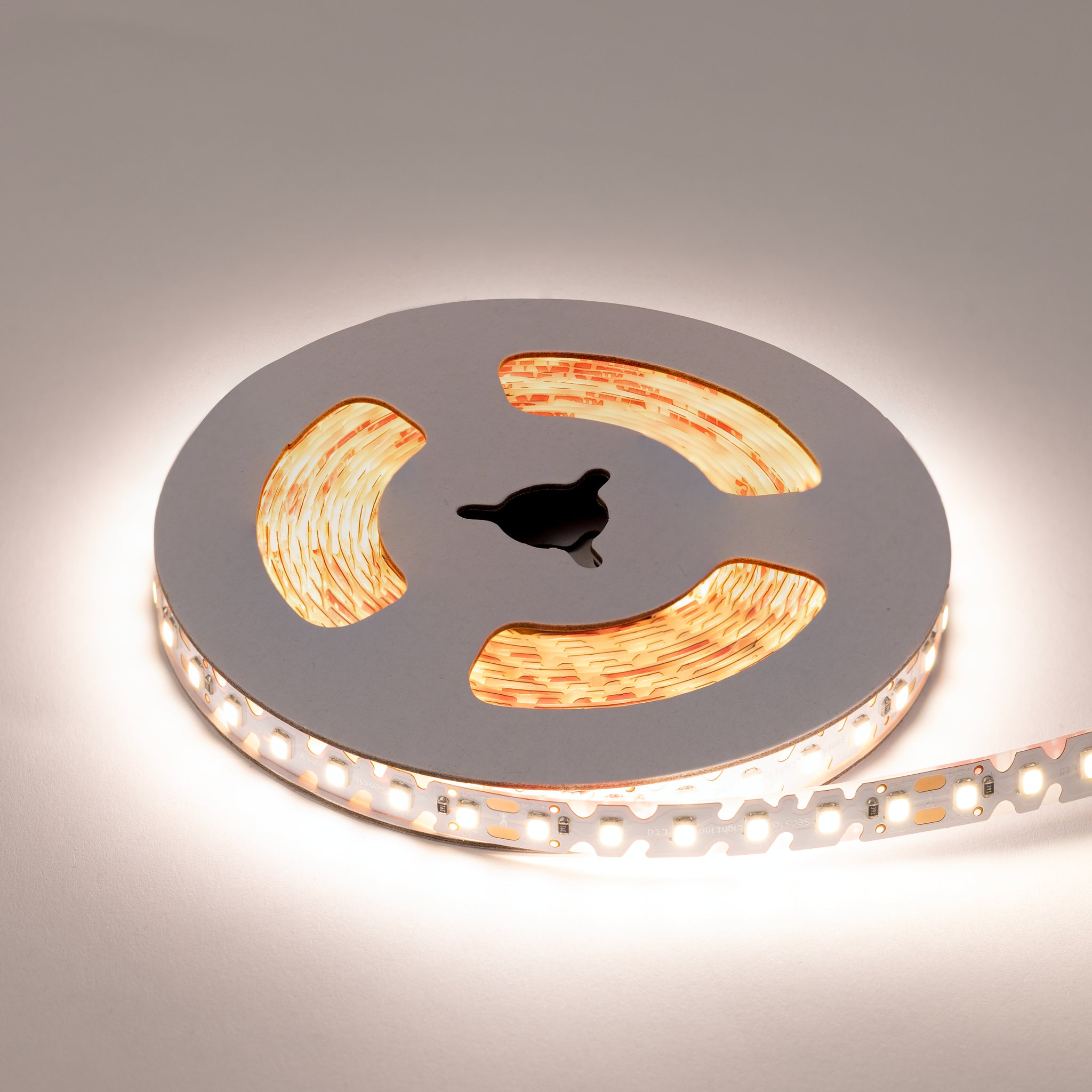

Sigma 2
Applies seamlessly around flat corners
NEW
#Light Colour_ Natural White #Size_3m #Size_5m #Size_10mRazor X 4mm

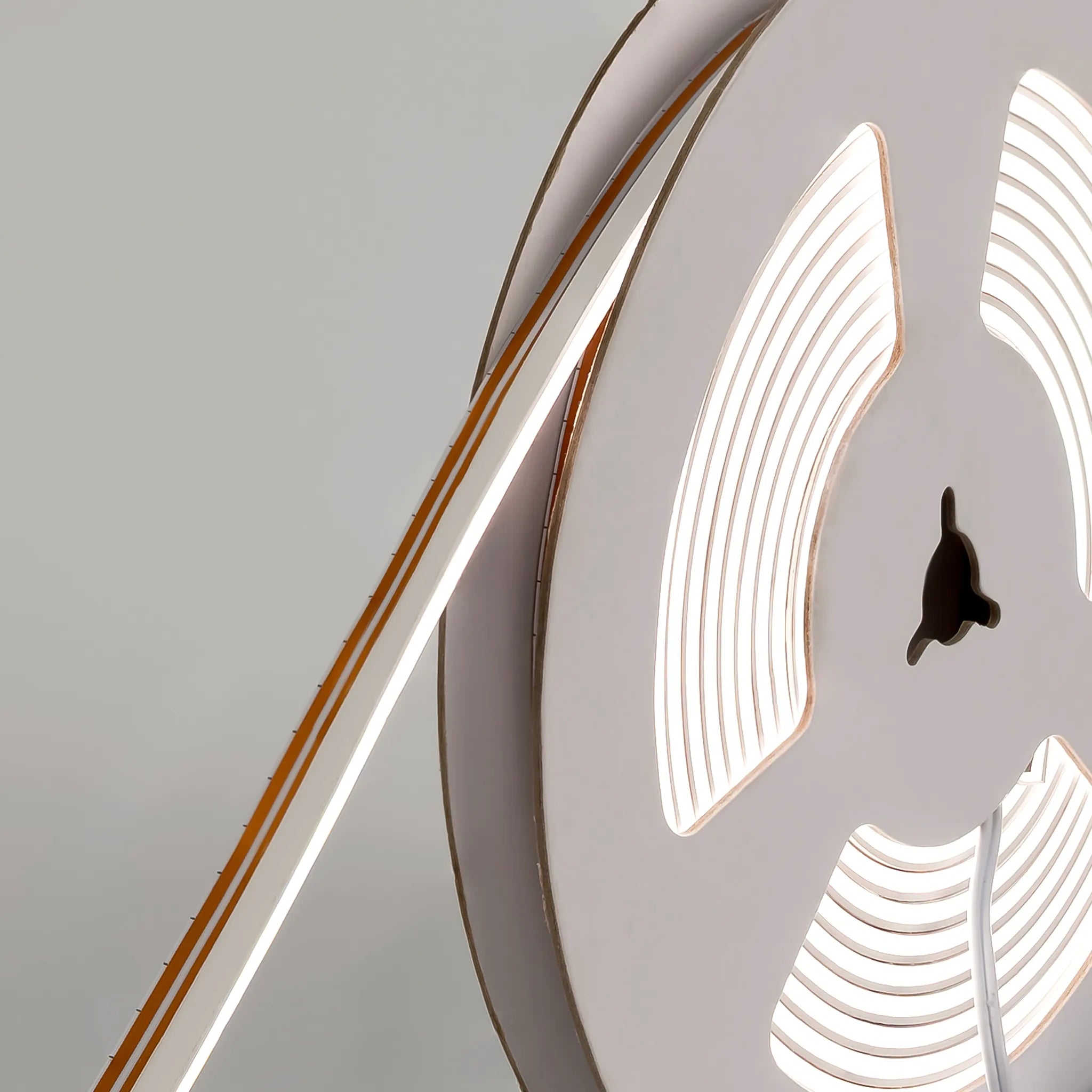

Razor X 4mm
Free cut, edge-lit, flexible strip
#Finish_Stainless Steel #size_single light#Finish_Stainless Steel
Apex TrioTone®
Slimline LED under cabinet spotlight
#size_Single Light#size_Single Light

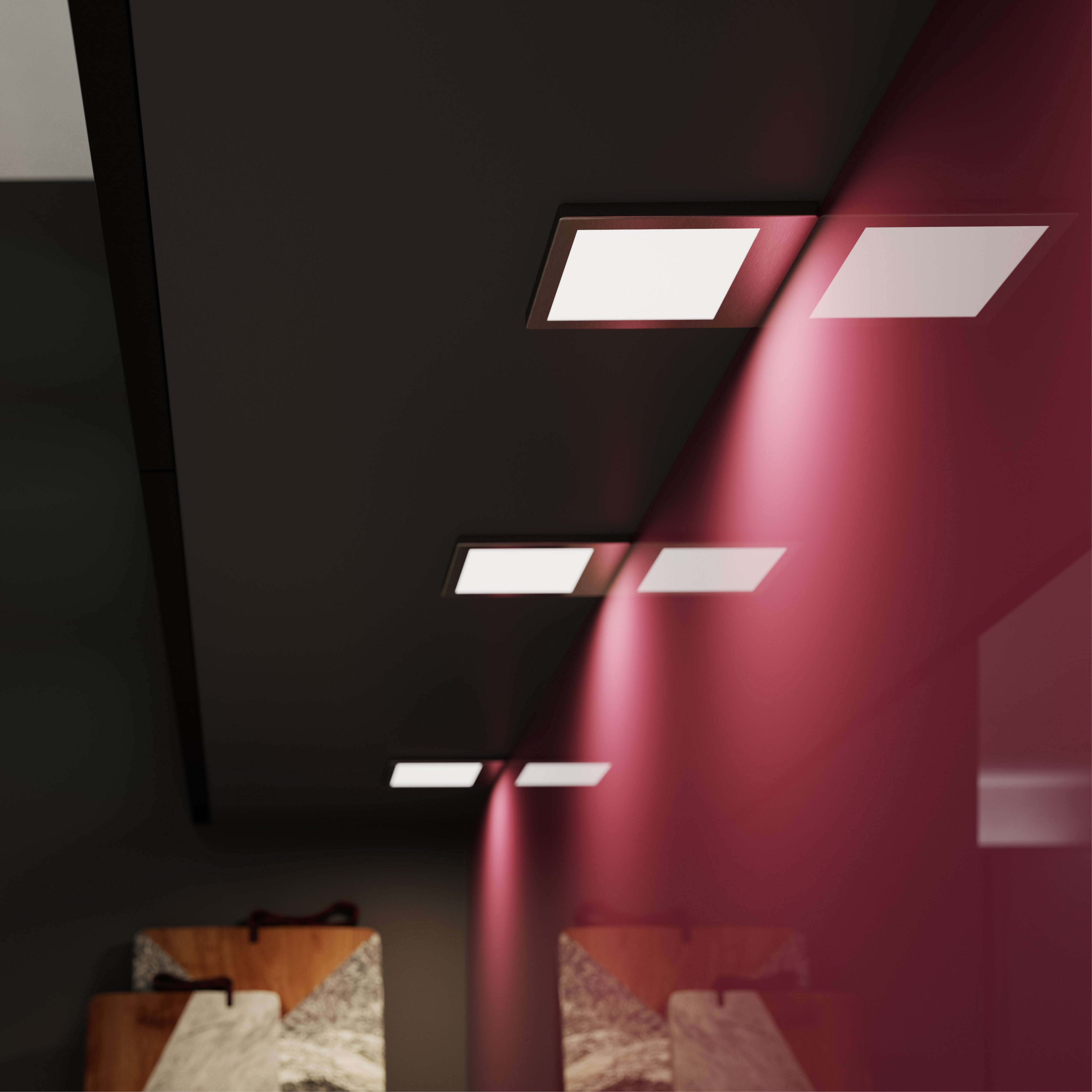

Horizon TrioTone®
