Zella
Acrylic Profile For Recessed Installation
The Zella profile is designed for recessing strips into cabinets with a seamless finish. Providing a fully diffused light for a soft and even glow.
- Simple push-fit installation

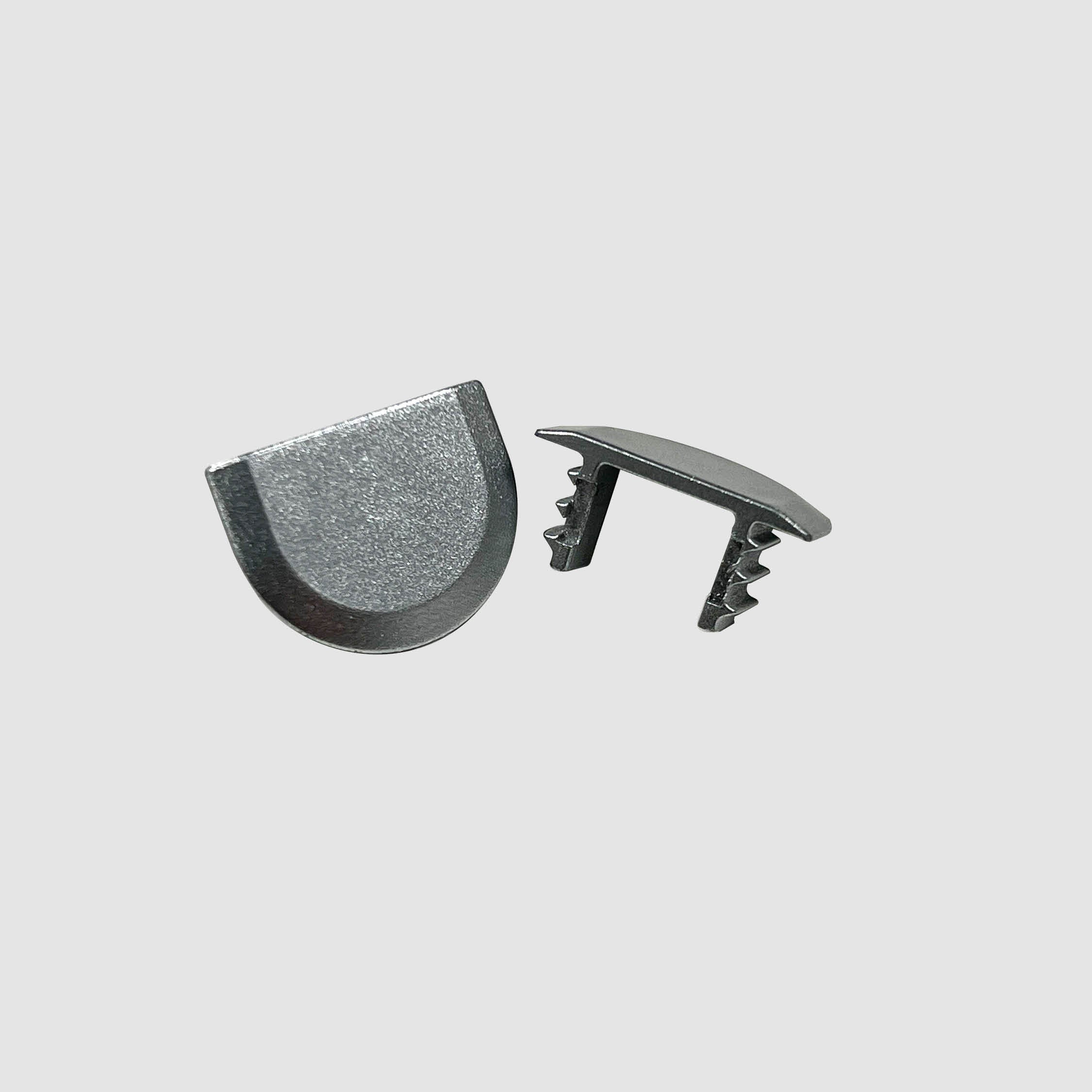

- Supplied with rounded end caps for optional use
- Can be cut to any desired length
- Wide wings cover any router imperfections
- Profile finish fully diffuses light

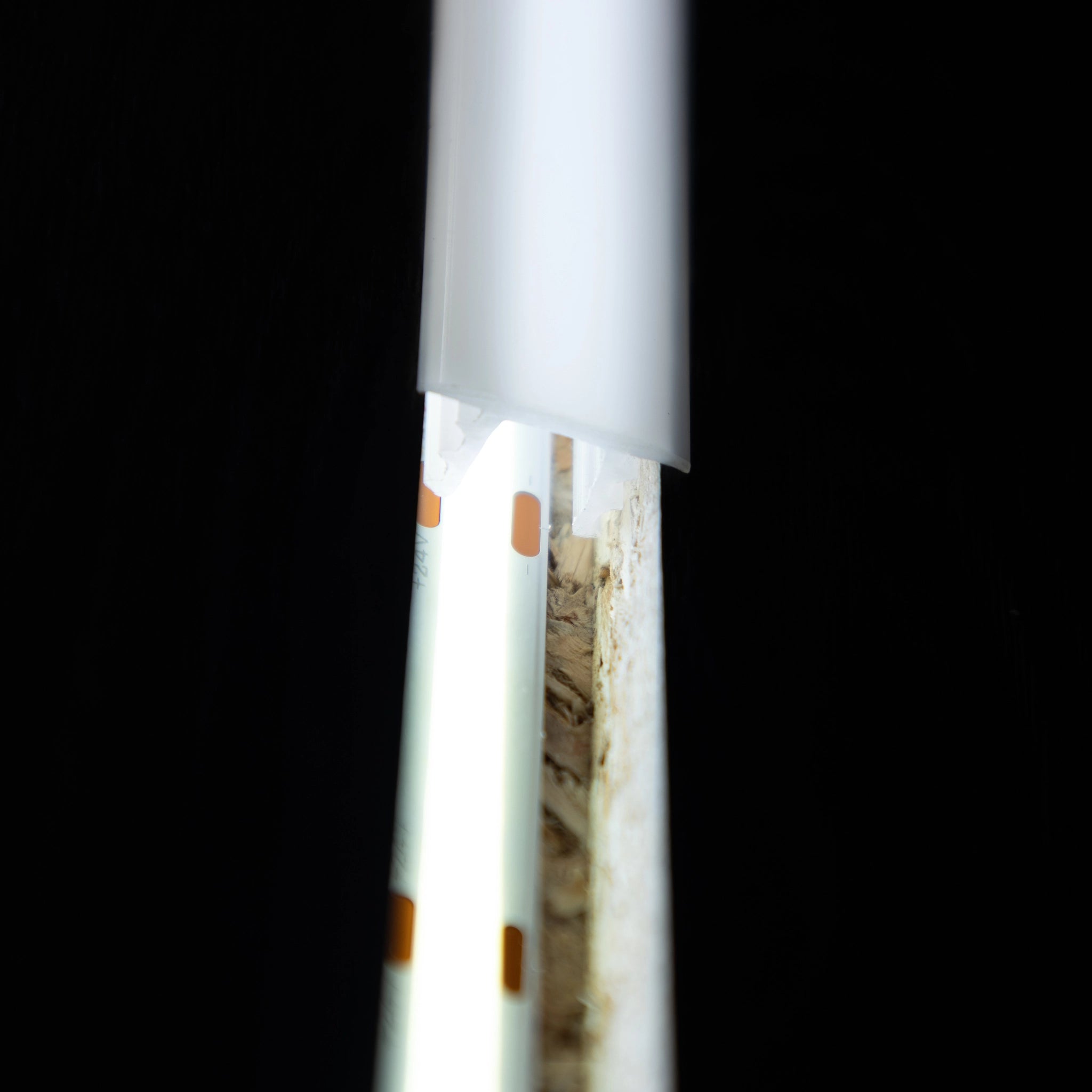

- Plastic side walls pin the flexible strip to the bottom of the channel
- Compatible with flexible strips of an 8mm width or more
- Comes with rounded end caps for a clean finish to routed channel

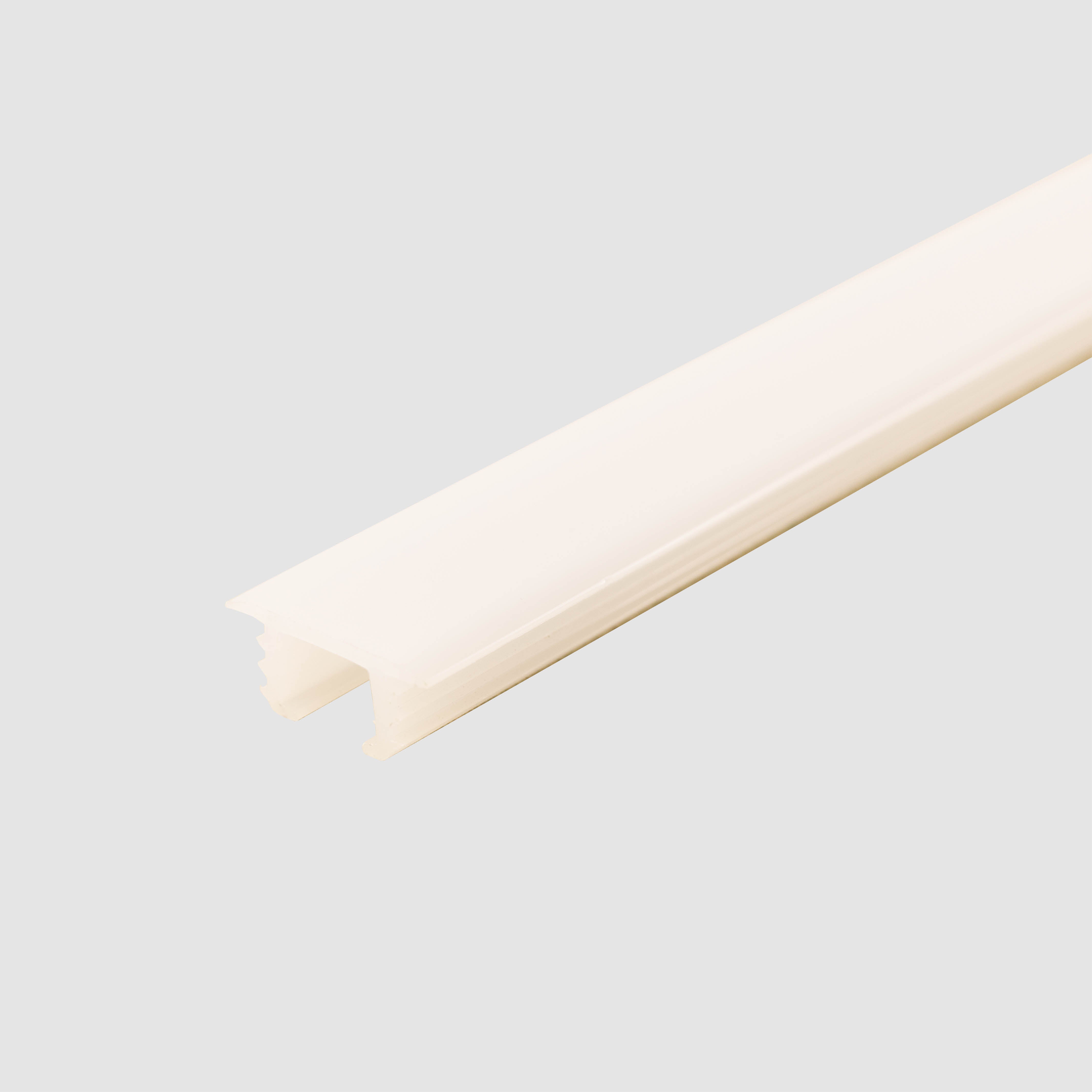

- Available in 1.5m or 2.5m lengths
- IP Rating: IP20
Specification
Specification
Guides & Downloads
Guides & Downloads
View and download the product files and technical specifications

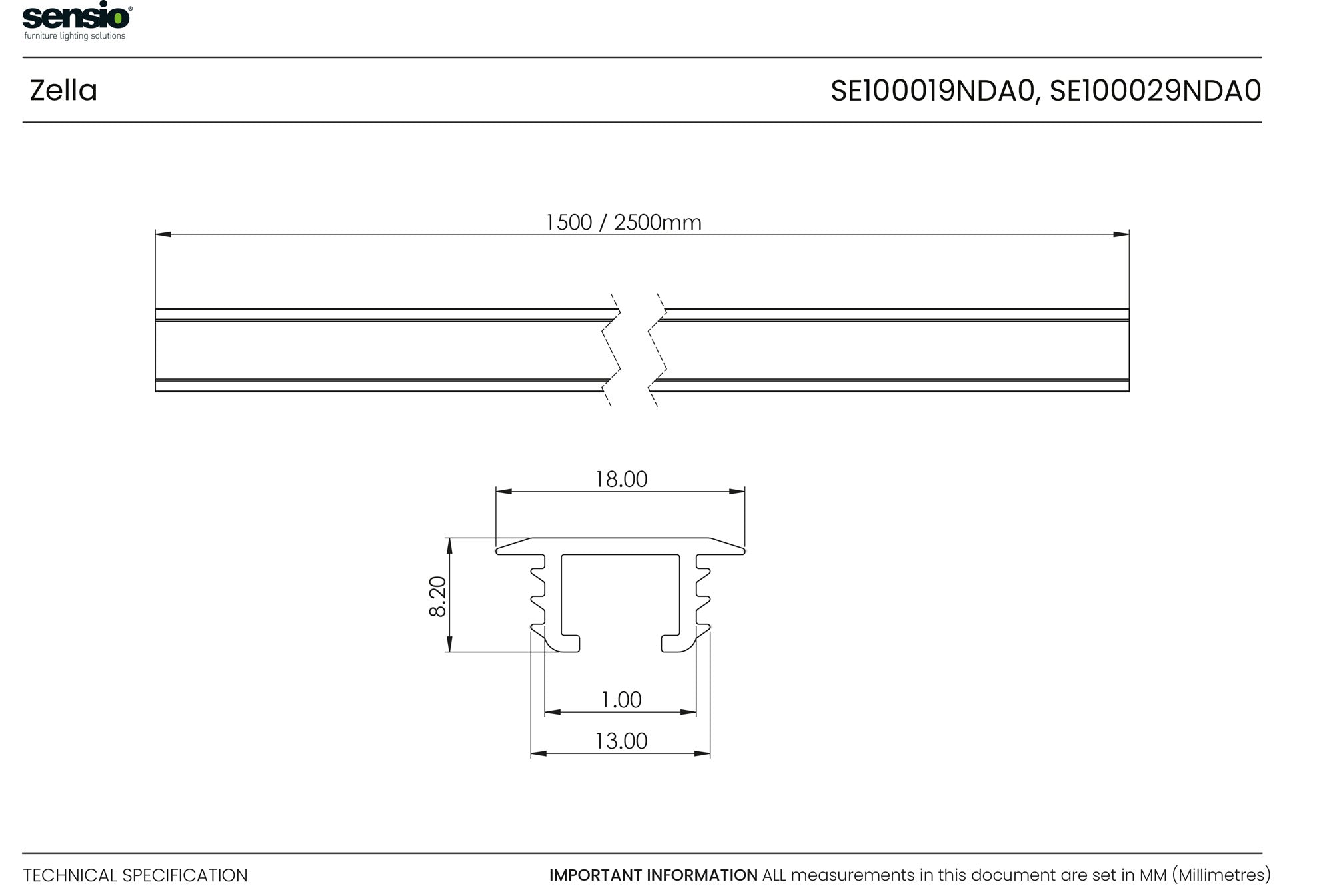

Dimensions
Guides & Downloads
View and download the product files and technical specifications
This product has no reviews yet.
Simple installation
Step 1

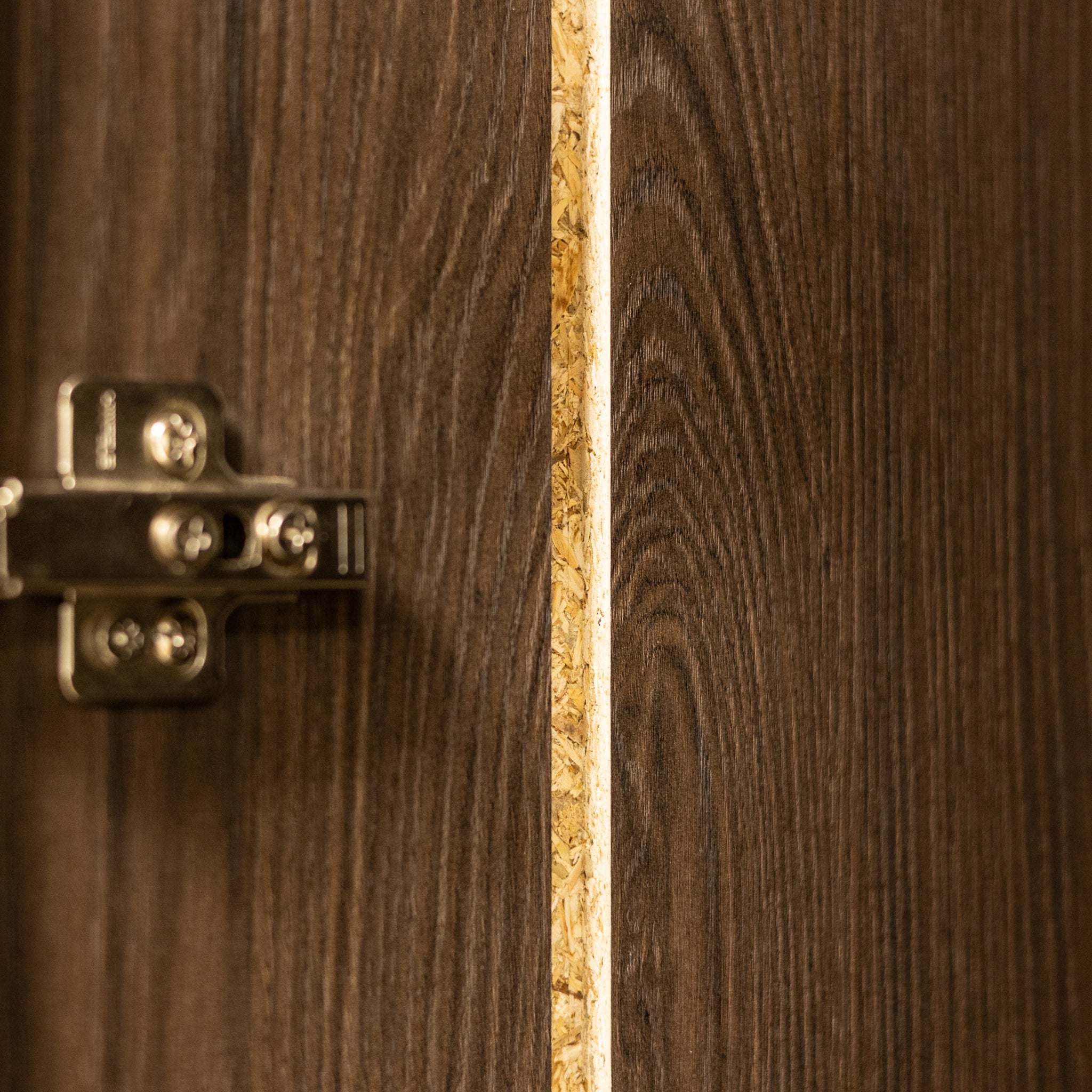

Cut a channel of 12.7mm in the cabinet or wardrobe you are installing the Zella
Step 2

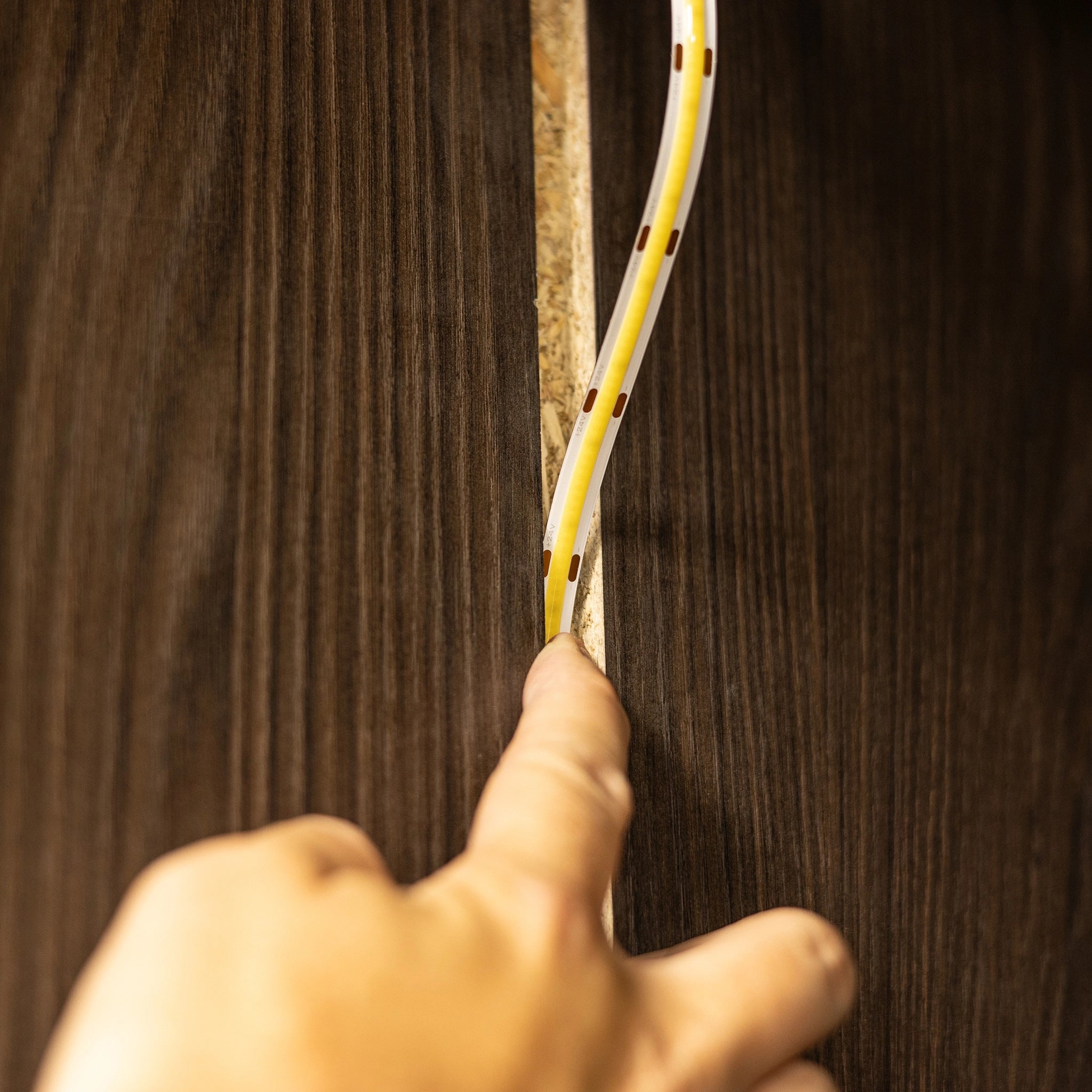

Secure your flexible LED strip using the adhesive VHB tape

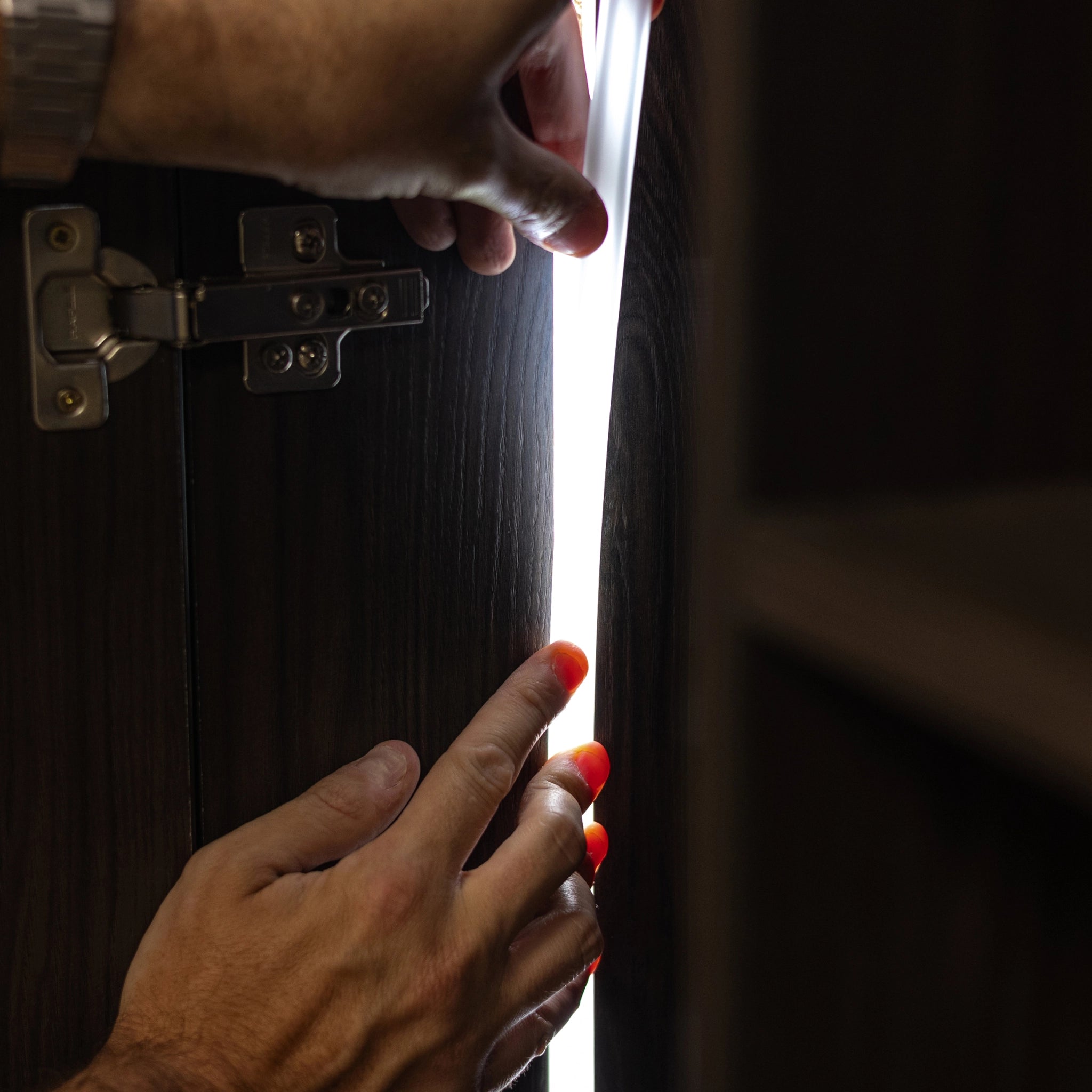

Step 3
Easily push the Zella into the channel. Use the end caps to finish your installation cleanly.
High quality finish
Wide wings cover any router imperfections and provide a flush recessed finish.
Considered application
Can be cut to any desired length.
Registered Design Rights - 6341999
Designed in the UK
Compatible flexible strips
CCT flexible LED strip
8mm CCT flexible LED strip
Nano style 3.5mm flexible LED strip
Diffused, COB, RGBCCT flexible strip
Free-cut, COB, flexible strip
Free cut, COB, CCT flexible strip
Applies seamlessly around flat corners
