Bathroom Zones and IP Ratings
Using electrical equipment in bathrooms or wet rooms requires attention to safety. The IEE Wiring Regulations (18th Edition) have identified particular zones within the bathroom to indicate what type of electrical equipment can be installed.
Zone 0
Inside the bath, shower or wet room zone.
This area requires a minimum rating of IP67 and must be low voltage (12V max).
Zone 1
Up to 2250mm above bath, shower or wet room basin. A minimum rating of IP44. For 240V fittings, a 30ma RCD must also be used to protect the circuit.
Zone 2
600mm outside a bath, shower, sink or water outlet.
A rating of at least IP44 is required.
Outside Zones
Anywhere outside zones 0, 1 and 2, where water jets are not used for cleaning purposes, the general rules of BS7671 apply.
IP Ratings
The IP (Ingress Protection) rating is a two digit code given to a piece of electrical apparatus that indicates the degree of protection its enclosure provides from dust, water and impact.
IP Rated
Bathroom Products
Perfect for use inside cabinets or wardrobes
Recessed universal profile for a minimal finish
Versatile plinth light with colour selectable LEDs
Rechargeable battery illuminated mirror
Rechargeable battery illuminated mirror
Angled profile ideal for illuminating cupboards
A free-cut bathroom safe flexible strip
Rechargeable battery illuminated mirror
Accessory kit for all Sensio extractor fans
Fan with built-in humidistat and timer
Rechargeable battery illuminated mirror
Low volume fan with on/off switch
Fan with built-in, energy saving, timer
Over mirror, T-Bar LED light
Low volume fan with integrated LED light
Colour selectable, fire rated downlight
Edge-lit temperature selectable LED mirror
Rechargeable battery illuminated mirror

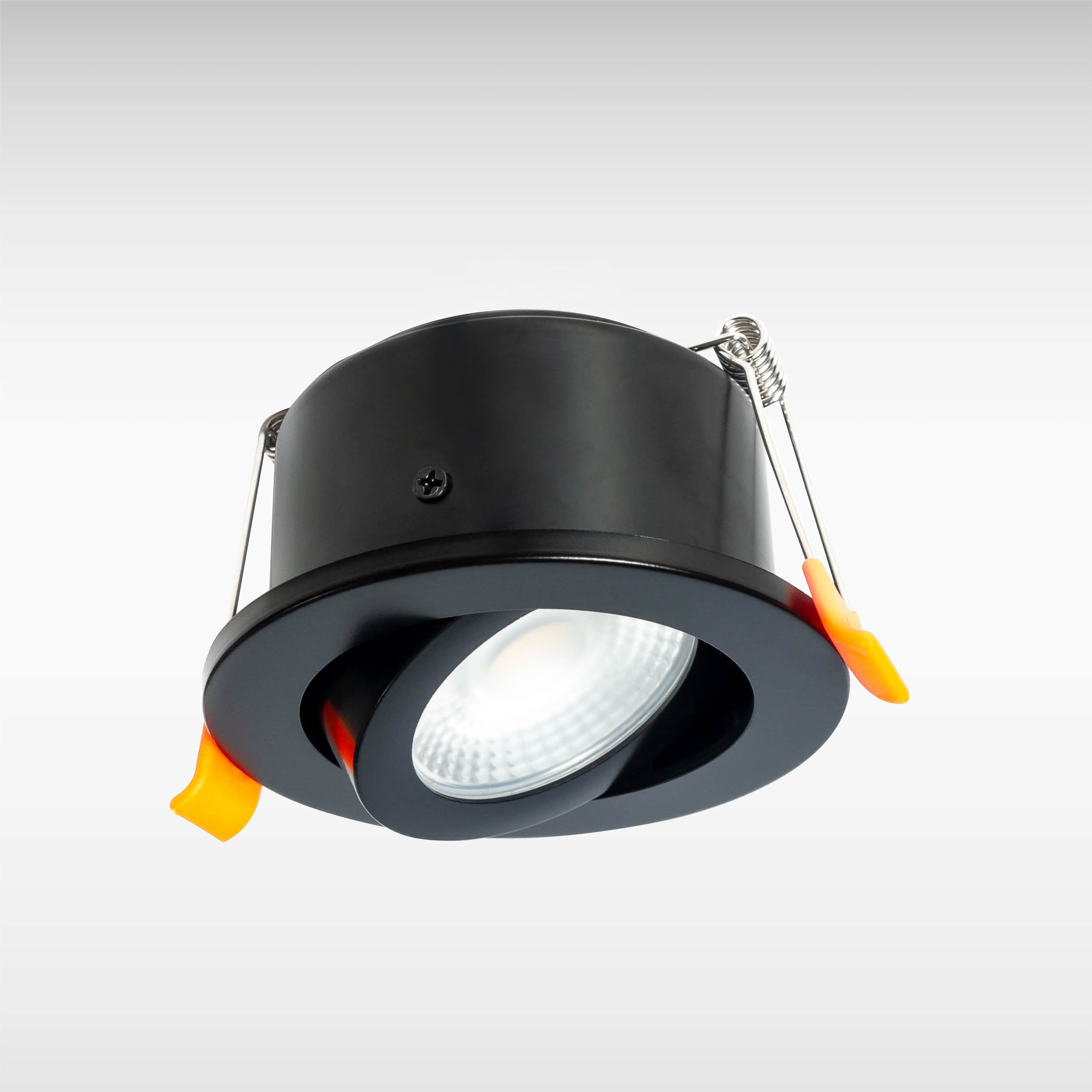

Fire rated, tiltable, downlight
CCT seamless border LED mirror
CCT seamless border LED mirror
Fire rated colour selectable downlight
Edge-lit temperature selectable LED mirror
Back-lit, colour selectable LED mirror
Colour selectable, floating edge LED mirror
Ultra-slim illuminated LED mirror
Double-sided, ceiling mounted, CCT LED mirror
Decorative non-illuminated mirror
Classic cluster spotlight
Colour selectable, floating edge LED mirror
CCT seamless border LED mirror
Diffused CCT LED illuminated mirror
AA battery LED illuminated mirror

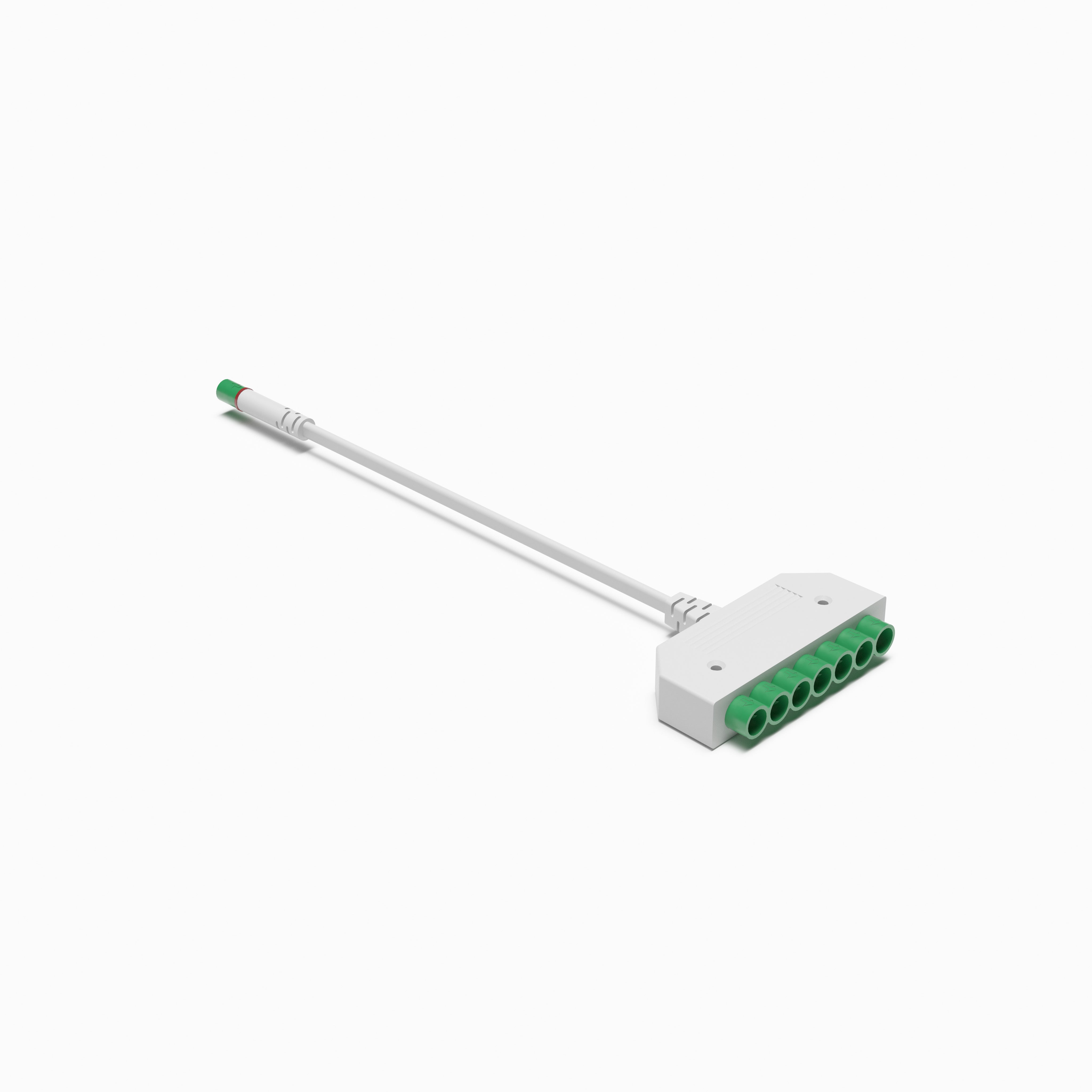

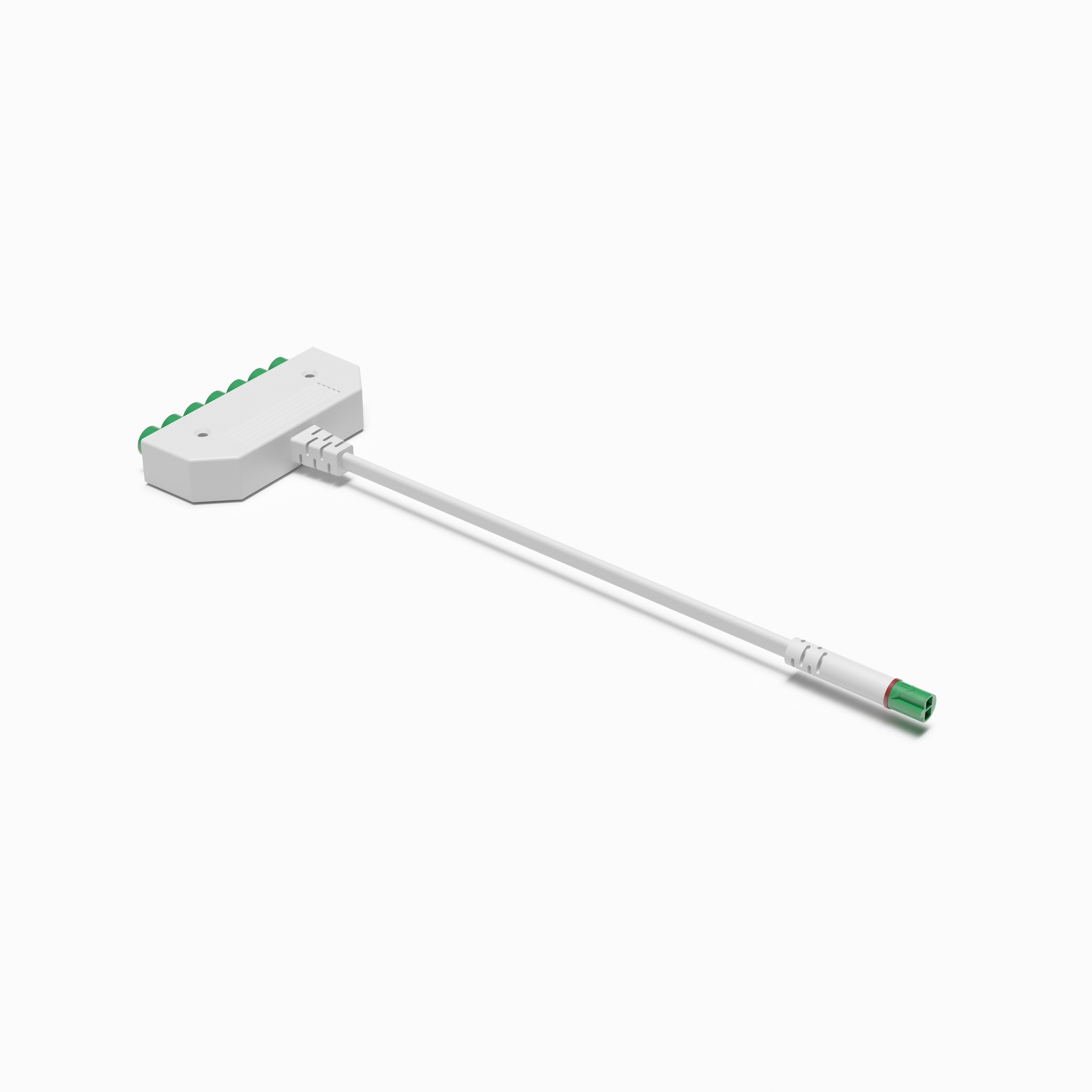

Port expander for Titan IP44 driver
Decorative non-illuminated mirror
Classic bar spotlight
Linear colour adjustable wall light
Slimline colour selectable downlight
Diffused ceiling light with an IP44 rating
Colour selectable, floating edge LED mirror
Striking matt black and crystal pendant light
Slimline LED mirror with IR sensor control
Stylish etched illuminated bordered CCT mirror
Colour adjustable backlit LED mirror
Slimline illuminated mirror with cool white LEDs
Sleek backlit, cool white, LED mirror
Dual lit, single door, LED illuminated cabinet
Round ceiling light with integrated LED strip
LED illuminated cabinet with shaver and USB
Bathroom zones FAQs
Bathroom lighting guideWhat are bathroom zones?
Bathroom zones are areas around the bath, shower and basin that set what type of electrical equipment can be installed, based on how likely it is to get wet. Zone 0 is inside the bath or shower, zone 1 is above it, and zone 2 is the area around it. Everywhere else is outside the zones.
What IP rating do I need for zone 0?
A minimum of IP67, and the fitting must be low voltage (12V max).
What IP rating do I need for zone 1?
A minimum of IP44. Zone 1 covers the area up to 2250mm above the bath, shower or wet room basin. For 240V fittings, a 30mA RCD must also protect the circuit.
What IP rating do I need for zone 2?
At least IP44. Zone 2 covers the area 600mm outside a bath, shower, sink or water outlet.
Can an LED mirror go in zone 2?
Our mains-powered illuminated mirrors and cabinets are IP44 rated, which meets the zone 2 requirement. Browse LED mirrors and mirror cabinets.
What does an IP rating mean?
IP stands for Ingress Protection. The two-digit code shows how well a fitting's enclosure is protected: the first digit against dust and solid objects, the second against water. The higher the number, the greater the protection.
Who should install bathroom lighting?
Electrical work in bathrooms should be carried out by a qualified electrician, in line with the current wiring regulations (BS 7671).
